Epoxy solar panel

6V 1W 110X60MM Customized mini epoxy Solar Panel for charging Li-ion battery

Lamination Material: EPOXY solar panel
Power: 1W

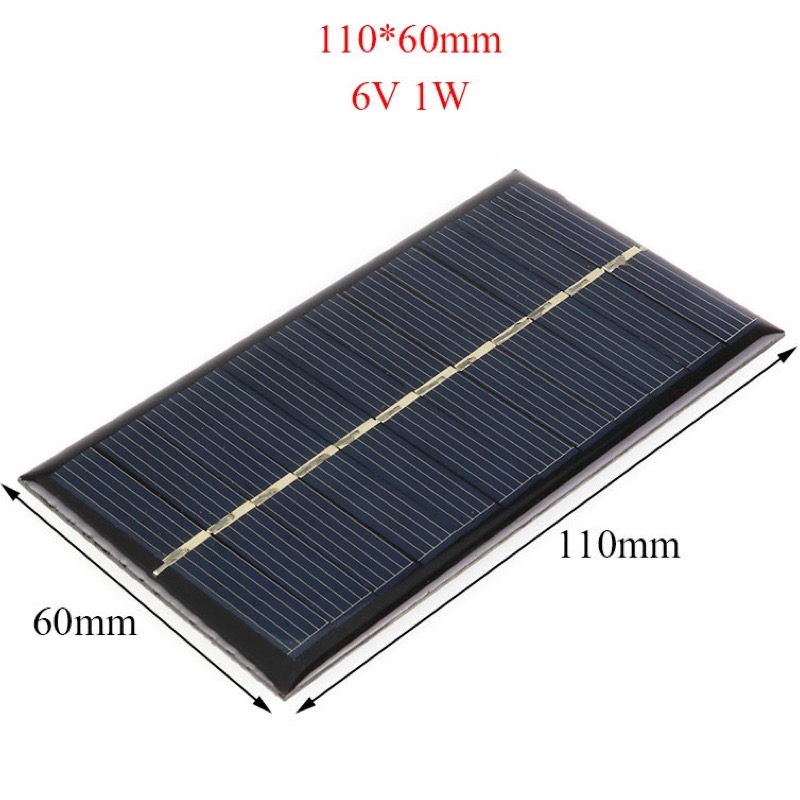

Solar panel shape: 110x60x2.5mm solar panel
Product description: 6V 1W 110X60MM Customized mini epoxy Solar Panel for charging Li-ion battery
INQUIRY

HIGHLIGHTS:

Material:	Polycrystalline sillicon, FR-4 PCB, epoxy resin
Peak power:	1W
Max voltage:	6.0V
Max current:	166mA
Open voltage:	6.8V
Short current:	176mA
Weight:	23G
Operating temperature	-40°C to +85°C
Maximum system voltage	1000VDC
NOCT	48°C+/-2°C
Current temperature coefficient	%/K	0.06+/-0.01
Voltage temperature coefficient	mV/K	-(78+/-10)
Power temperature coefficient	%/K	-(0.5+/-0.05)
