Epoxy solar panel

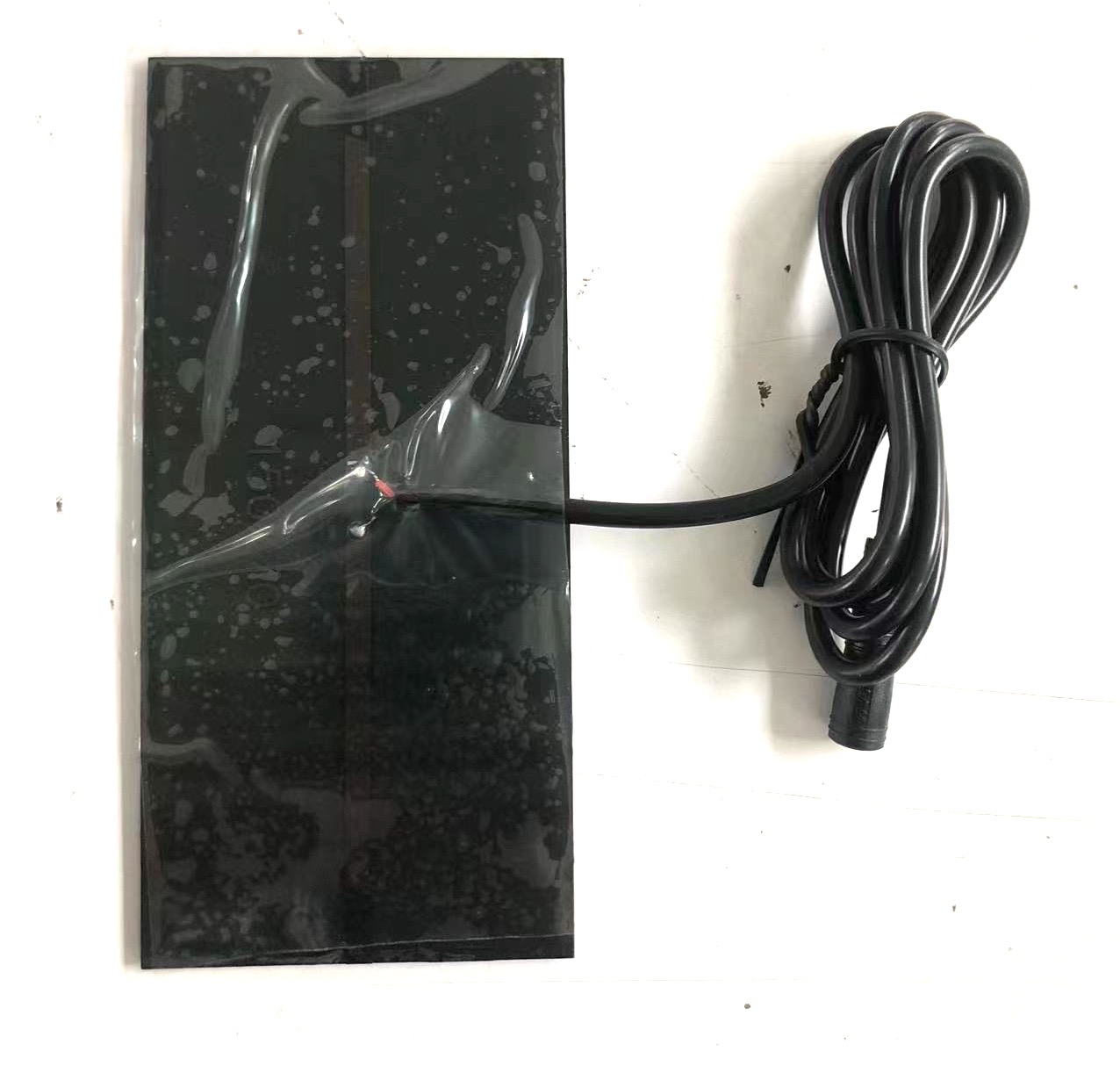

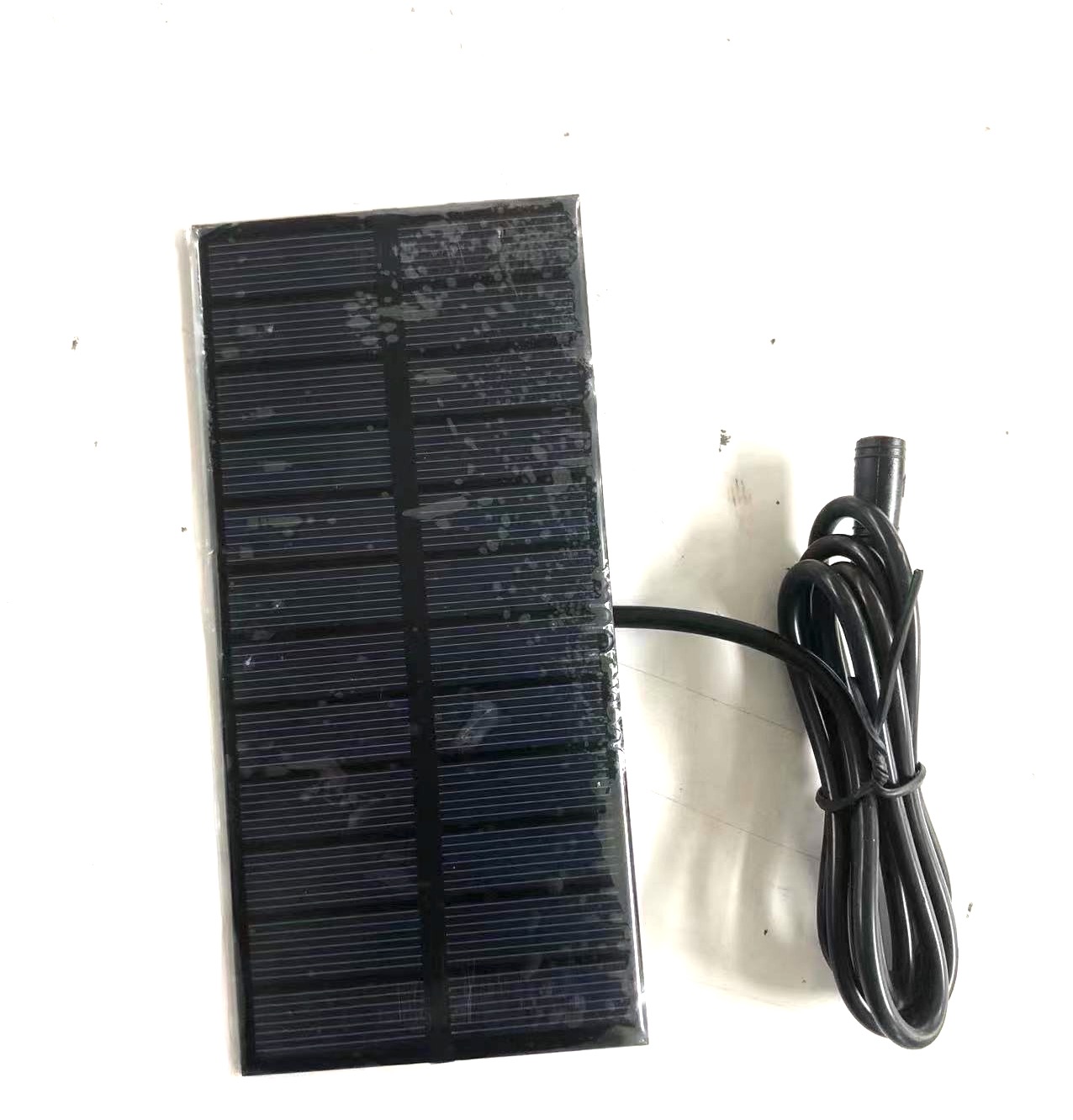

  • 6V 150x70MM Mini Epoxy Solar cell Panel with cable soldered for solar IOT solar toys
6V 150x70MM Mini Epoxy Solar cell Panel with cable soldered for solar IOT solar toys

6V 150x70MM Mini Epoxy Solar cell Panel with cable soldered for solar IOT solar toys

  • epoxy solar panel
  • mini solar panel
  • small solar panel
  • solar panel 6V
  • Product description: 6V 170x130MM 3W Mini PET Solar cell Panel for Small Solar System LED Light solar energy system
  • INQUIRY

Material: Polycrystalline sillicon, FR-4 PCB, epoxy resin
Peak power: 1.5W
Max voltage: 6.0V
Max current: 0.25A
Open voltage: 6.8V
Short current: 0.3mA
Weight: 88G
Operating temperature -40°C to +85°C
Maximum system voltage 1000VDC
NOCT 48°C+/-2°C
Current temperature coefficient %/K 0.06+/-0.01
Voltage temperature coefficient mV/K -(78+/-10)
Power temperature coefficient %/K -(0.5+/-0.05)
